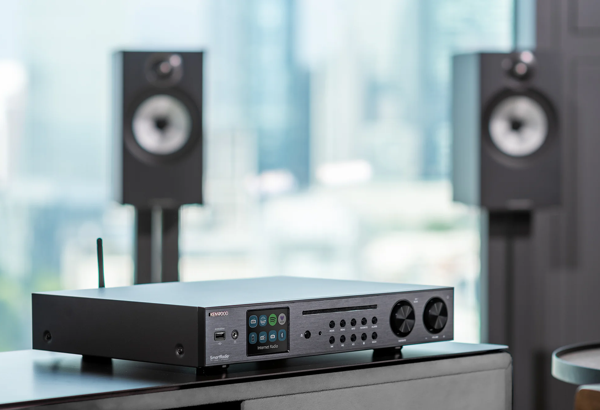

KR-W8000SCD-B

SMART Hi-Fi CD Receiver

The KR-W8000SCD is a practical all-in-one solution that combines all the virtues of a complete hi-fi system in a sleek designed housing. With a full range of modern connection options and sources, the smart CD receiver is recommended as the perfect stereo control center for hi-fi fans. There is even an integrated digital amplifier with DSP technology and 2 x 30W RMS power on board, making the KR-W8000SCD a powerful sound player for HiFi speakers. In addition to the massive speaker terminals, analog and digital inputs (optical/coaxial) allow the connection of a wide variety of players such as TV receivers or game consoles. If you want to expand the connected speakers in the deep bass range, you will find a woofer output for an active subwoofer. For vinyl lovers, the phono input (MM) offers the option of connecting a turntable directly. The smart receiver also supports wireless standards such as Bluetooth audio streaming or network services such as Spotify or Deezer, which, like the integrated Internet radio and podcast player, obtain their data from the web via WiFi.
  • Wi-Fi
  • Bluetooth®
  • Spotify Connect
  • DAB+ Tuner
  • Bluetooth

Pagrindinės savybės

3,2“ TFT-Color Display
2 x 30W RMS / Amplifier with DSP
Aluminum front panel with two rotary controls
Internetradio / Podcasts over WiFi / Spotify Connect / Spotify HiFi / Deezer
DAB+ and FM RDS-Receiver
BLUETOOTH Audiostreaming (A2DP)
CD drive for audio CDs, MP3 and WMA files
USB (FAT16 / FAT32 supports music format: MP3)
Analog line input / phono input (MM) / 2 x Digital In (optical / coaxial) for TV, receiver or other sources
Analog line out / digital output (optical / coaxial) / Subwoofer output
3.5mm Headphone connection
Solid speaker terminals
Controllable smartphone app UNDOK / OKTIV
Remote control included

Bendrosios savybės

Ekrano tipasTFT Color Display
Display Size3,2“ (8,1 cm)
Meniu kalbaDanish, Dutch, English, Finnish, French, German, Italian, Norwegian, Polish, Portuguese, Spanish, Swedish, Turkish
EkvalaizerisTaip
Equalizer Presets11 Presets (Normal / Jazz / Rock / Movie / Classic / Pop / News / Podcast / Podcast Auto Adjust / My EQ
TimerTaip, , Various alarm functions, sleep timer, time display
AlarmTaip, , Dual Alarm
Sleep TimerTaip
Nuotolinio valdymo pultasTaip
Remote Control AppTaip, (UNDOK app and OKTIV app)

Sources

TunerTaip, FM and DAB+
Internet RadioTaip
Bluetooth®Taip
Spotify ConnectTaip
PodcastsTaip
DeezerTaip
CD PlayerTaip
USB PlayerTaip
AuxiliaryTaip
OpticalTaip
CoaxialTaip
PhonoTaip

Tuner

FM TunerTaip
FM RDSTaip
FM Tuning Frequency Range87,5 ~ 108 MHz
DAB+ TunerTaip
DAB+ Tuning Frequency Range (Band III)174,928 ~ 239,2 MHz
Mixed Presets40

CD Player

CD DA / CD-R/RWTaip
Signalo ir triukšmo santykis> 70 dB
Dinaminis diapazonas> 60 dB
MP3 playbackTaip
Program PlaybackTaip
Repeat PlaybackTaip, One / Folder / All
Random PlaybackTaip

USB

Terminal TypeUSB-A
FormatUSB Host (Playback)
USB Standard1.1 Full Speed
Failų sistemaFAT 16 / 32
Maximum Current Supply0,5 A
Playable filesMP3
MP3 Sampling Frequency16bit/48kHz
MP3 Bitrate32 kbps ~ 320 kbps
Program PlaybackTaip
Repeat PlaybackTaip, One / Folder / All
Random PlaybackTaip

Bluetooth

Bluetooth®Taip
Version5,2
Class2
Maximum Transmission Power4,83dBm
Dažnių juosta2,4 GHz (2,402 GHz - 2,48 GHz)
A2DPTaip
AVRCPTaip
Maximum service areaAbout 10m (Communication range may vary depending on the environmental conditions)

Wi-Fi

Wi-FiTaip
Wi-Fi IEEE Standard802,11
Wi-Fi Protocola / b / g / n
Wi-Fi Security EncryptionWEP, WPA, WPA2 (PSK), WPS
Wi-Fi Frequency Range2,412 ~ 2,472 GHz
Wi-Fi Frequency Range5,18 ~ 5,32 GHz
Wi-Fi Frequency Range5,5 ~ 5,7 GHz
Wi-Fi Frequency Range5,745 ~ 5,825 GHz
Wifi Output Power WiFi2,4G - 15,2 dbm
Wifi Output Power WiFi5G - 14,94 dbm
Wifi Output Power WiFi5,8G - 7,27 dbm

Network Features

Network FunctionTaip, Wireless
Wi-FiTaip
Internet RadioTaip
BluetoothTaip
Podcast via WiFiTaip
DeezerTaip
Spotify Lossless AudioTaip

Input(s) / Output(s)

Line InputTaip, , Cinch
Line OutputTaip, , Cinch / variable output level
Subwoofer OutputTaip, , Cinch / 25-250Hz ±3dB
USB jungtisTaip, at the frontside
Coaxial InputTaip, , (1/2) Cinch
Coaxial OutputTaip, , Cinch
Phono InputTaip, , Moving Magnet (mm) Cinch
Headphone OutputTaip, , 3.5 mm Jack at the frontside

Amplifier

RMS Output Power2 x 30 watt
Recommended speakerImpedance 4-8 ohms; Min. 30W nominal load per piece

Power

Energijos sąnaudos60 Watt
Stand-by Power Consumption0,7 Watt
Power Consumption in networked Stand-by mode1 Watt
Power Supply110-240V AC 50/60Hz
Operational Temperature Range5 °C ~35 °C

App(s)

UNDOKTaip
App Store (Apple)https://apps.apple.com/app/undok/id940349372
Google Play (Andoid)https://play.google.com/store/apps/details?id=com.frontier_silicon.fsirc.dok2
OKTIVTaip
App Store (Apple)https://apps.apple.com/us/app/oktiv/id1589212765
Google Play (Android)https://play.google.com/store/apps/details?id=com.frontiersmart.oktiv&pli=1

In The Box

Power CordTaip
Nuotolinio valdymo pultasTaip
BaterijaTaip, 2 pieces - AAA type
RCA Audio CableTaip, , 1.5 meter
Multi-Language Instruction ManualTaip
DAB+/FM AntennaTaip, , screwable telescopic antenna
WLAN/BT AntennaTaip, , screwable antenna

Dimensions & Weight

Išmatavimai(W) 430 x (H) 68 x (D) 303 mm
Svoris3,53kg

Disclaimer & Trademark

Bluetooth®The Bluetooth® word mark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVCKENWOOD Corporation is under license.
Spotify ConnectSpotify and the Spotify logo are among the registered trademarks of Spotify AB
OthersAll other brands, products names, logos or trademarks are the property of their respective holders.
